Endo Motor - End E Class

Meta DentalSKU: 2200-500 (ENDO E CLASS)

Price:
Sale price$615.00

Description

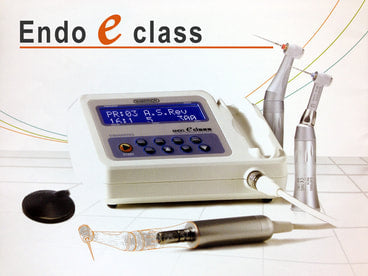

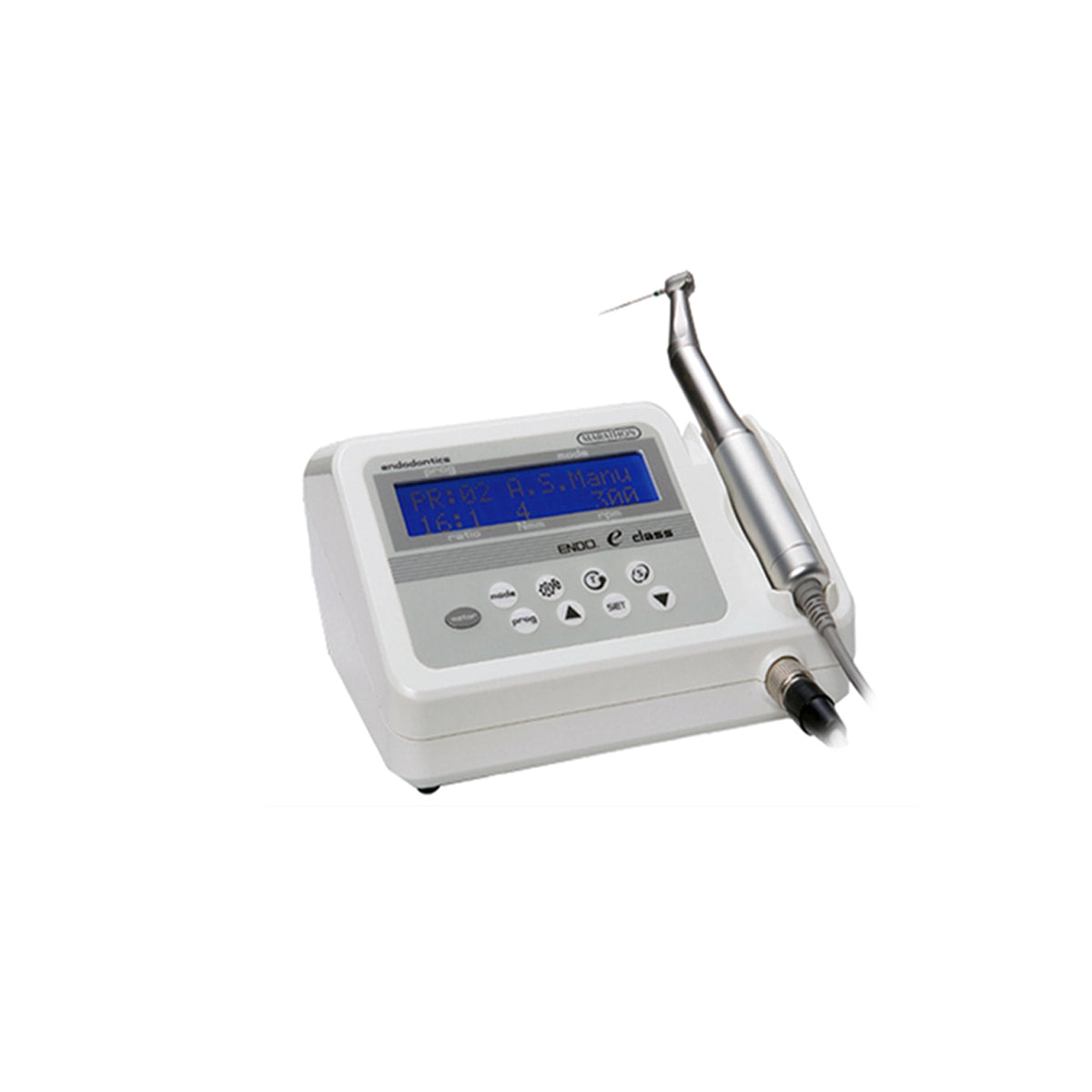

The Endo E Class is an endodontic handpiece that can drive from 20 to 2,900 rpm and has a torque of 9.9Ncm (excluding 6:1). Reduction Gear Ratios available include 6:1, 8:1, 10:1, 16:1, 20:1, and 64:1. The handpiece is renowned for its incredibly accurate, stable performance, and quiet and pleasant operation.

It has an Auto Stop Reverse feature, which is essential for patients' comfort during endodontic procedures. When the preset torque reaches its maximum, this feature activates, causing the handpiece to halt and automatically operate in reverse. The SDE-EM24E (E-Type Motor) that is included in the kit is quite compatible with other E-Type contra angles.

Specification:

  • Input: AC 100V-120V 50/60Hz, AC 220V-240V 50/60Hz
  • Number of Program Memory: 15EA
  • Max. Torque: 9.9Ncm (except 6:1)
  • Speed Range (Handpiece): 20-2900rpm (6:1, 8:1, 10:1, 16:1, 20:1, 64:1)
  • Speed Range (Charging Station): 20-2900rpm
  • Dimensions and Weight (Handpiece): 20(W) x 168(L) mm, 125g
  • Dimensions and Weight (Charging Station): 175(W) x 125(D) x 90(H) mm, 910g
