Description

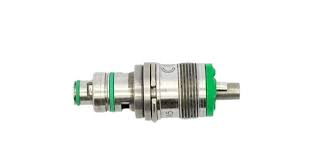

This coupler acts as the adapter between the dental unit's tubing and the high-speed handpiece. It screws onto the 5-hole fiber optic hose. The "Quick Disconnect" feature allows the dentist to snap a handpiece on or off instantly for sterilization or switching between instruments.
The "Fiber Optic" designation means it has electrical contacts to power a light source (halogen or LED) located within the coupler, which then shines through the glass rod of the attached handpiece to illuminate the oral cavity. The swivel mechanism allows the handpiece to rotate freely 360 degrees, reducing wrist strain caused by tubing drag.
Key Features
-
KaVo MULTIflex Compatibility - Precision-engineered to fit all KaVo MULTIflex-style fiber optic high-speed handpieces.
-
Integrated Light Source - Powers the fiber optics in the handpiece; often upgradeable to LED for brighter, whiter light.
-
360° Rotation - Allows the handpiece to turn freely on the coupler, preventing tubing tangles and reducing hand fatigue.
-
5-Hole Connection - Connects to standard ISO C (6-pin/5-hole) fiber optic tubing.
-
Quick Release - Features a simple ring or pull-back mechanism to instantly release the handpiece.
-
Water Spray Regulation - Many models include a small ring on the base to adjust the water coolant volume directly at the coupler.
